Precise Quality Control for Your Cartridge Products
Maximum Measurement Accuracy Through Innovative Technology

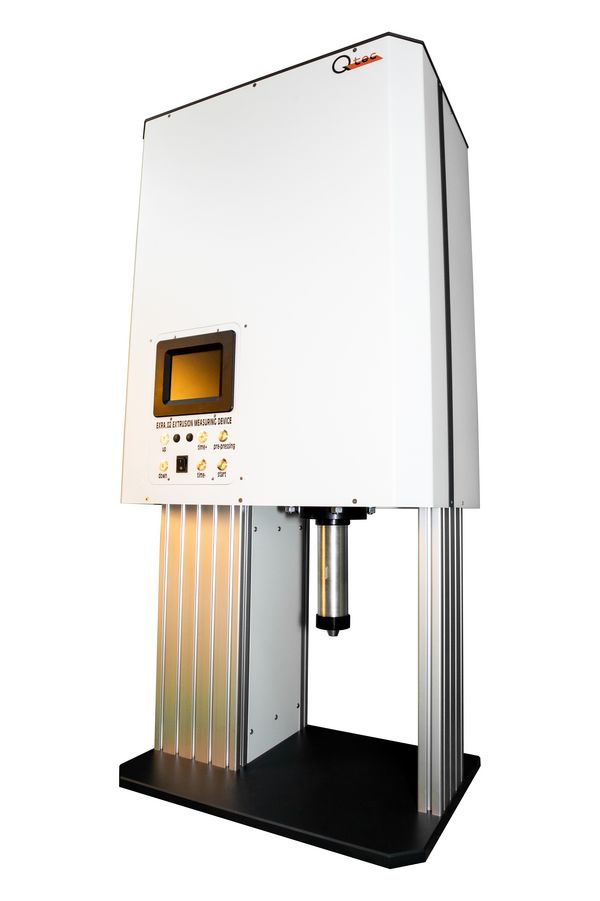

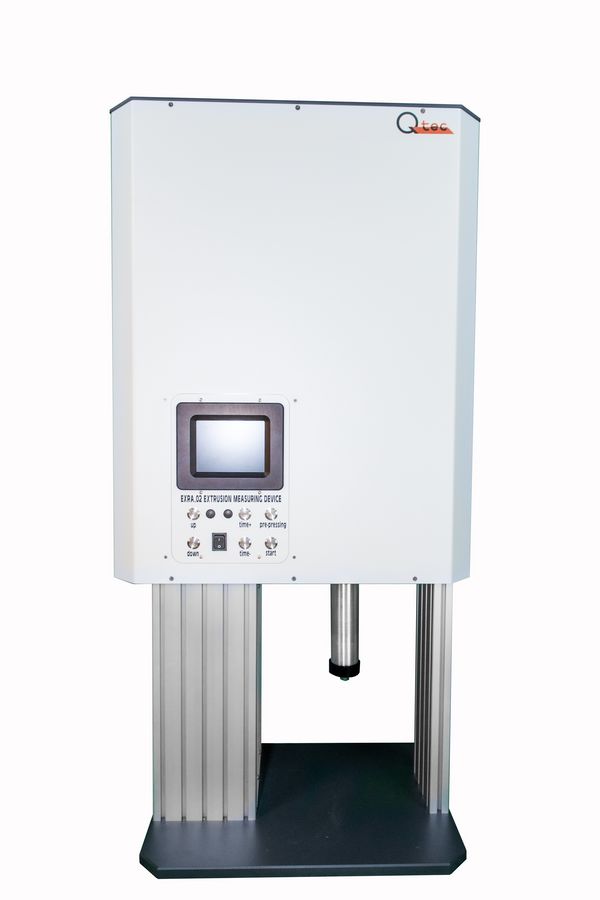

The EXRA.02 is a high-precision measuring device for determining the extrusion rate of cartridge-filled viscous materials using capillary extrusion.
Developed by Q-Tec GmbH, this system delivers reliable and reproducible results for your quality assurance.
Your Benefits at a Glance
Precise Measurement Results
• Constant pressure load through calibrated mass
• Measurement time accuracy: ±0.01 seconds
• Defined test conditions for reproducible results
Intelligent Operation
• Fully automated measurement sequence
• Integrated embedded PC with Linux RT operating system
• 6.4" TFT monitor with intuitive user guidance
• Graphical display of punch position
Flexible Configuration
• Pre-pressing function (0.5 - 10 sec) to eliminate measurement errors
• Adjustable measurement time: 1 - 30 seconds
• Adaptable extrusion nozzles for various applications
• Standard nozzle: Ø 3 mm, length 10 mm
Robust Construction
• Maintenance-free design for long service life
• Precision measuring device for industrial use
• Weight: approx. 230 kg for maximum stability
• Portable and table-mountable
Technical Highlights
Measuring Principle: Capillary extrusion with defined force application
Cartridge Holder: Ø 50.65 mm inner diameter for standardized conditions
Control System: Embedded PC with real-time control
Interfaces: Ethernet RJ45, USB
Power Supply: 100-240 V ~ 50-60 Hz, fuse 3.15A
Safety: Sensor-monitored locking, automatic safety position after 10 min.
