JIS K6251 Typ 3 - JIS 6301 Typ 3

  • High geometry stability
  • Small injury risk
  • Extreme service life

Technical data

Shouldered test bar according to JIS K6251 Typ 3 / JIS 6301 Typ 3 for tensile measurements

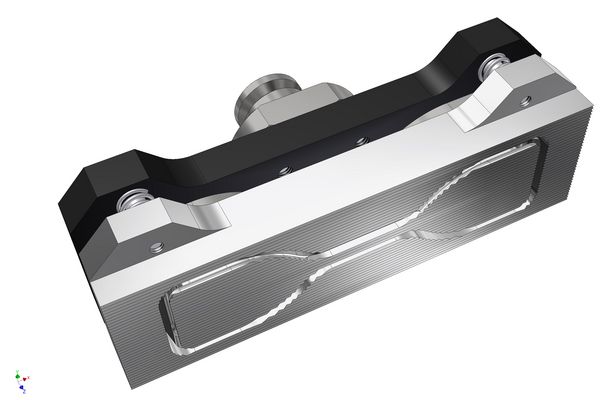

The cutting-die unit „JIS K6251 Type 3" / „JIS 6301 Type 3“ consists of a cutting blade and spring-loaded down holders. The cutting blade is made of powder-metallurgic knife steel and thereby guarantees an extreme lifetime. The blade is transversally sharpened on both sides, which results in vertical cut lines of an exact specimen cross section.

Cutting-die geometry

SI-dimensions of the specimen

Specimen size: 25 x 100 mm

    Features of the die cutter unit JIS K6251 Typ 3 - JIS 6301 Typ 3

    Complete die cutter unit

    • Lateral and central ejector feasible
    • Jig adapter for various die-cutter units available
    • Blade fully protected

    Accessories
