Technical data
Shouldered test bar according to ASTM D412 Type C for tensile measurements

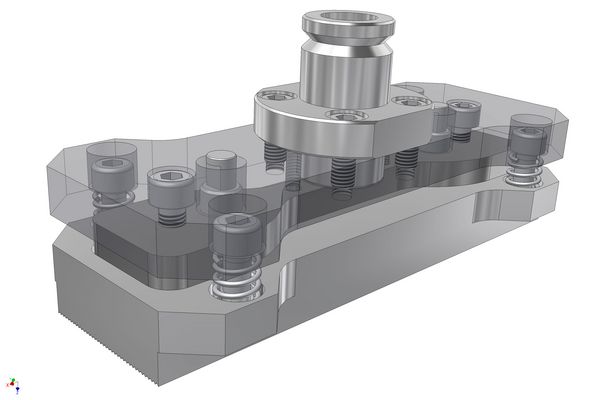

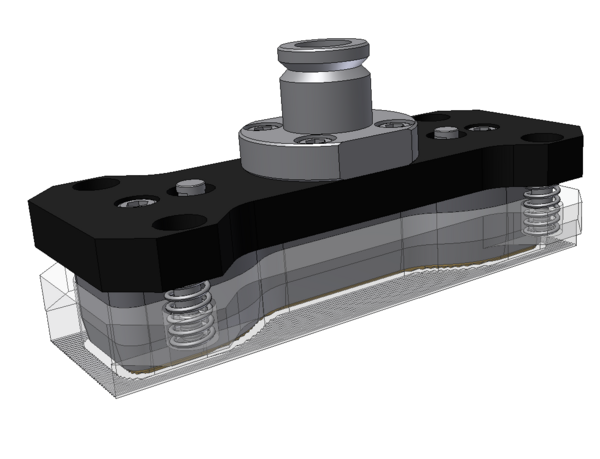

The cutting-die unit „ASTM D412-C“ consists of a cutting blade and spring-loaded down holders. The cutting blade is made of powder-metallurgic knife steel and thereby guarantees an extreme lifetime. The blade is transversally sharpened on both sides, which results in vertical cut lines of an exact specimen cross section.
Features of the die cutter according ASTM D412 Type C
Complete die cutter unit
- Specimen dimensions identical to DIN EN ISO 527-3 type 5 & DIN 53504 S1
- Lateral and central ejector feasible
- Jig adapter for various die-cutter units available
- Blade fully protected
- This die-cutting blade unit is also available in 3-fold or 5-fold configurations
